The principle of the small pellet making machine is circular motion on a plate die with high qualified alloy steel roller through a special treatment, spindle and flat die by the action of the friction between the roll rotation and plate die, the material between the roller and template will go into gelatinization so protein coagulation changes, then pellets produced by this home use pellet mill discharges from the die hole and sent…
Die Sizing selection for Pig Feed pellet mill Unlike the 8mm dies used for cattle, pig feed dies focus on fineness to maximize absorption. 2.0mm – 2.5mm (3/32 in): Creep feed for Suckling phase pigs. Enhances swallowing speed and reduces gut stress. 3.0mm – 3.5mm: Nursery Pigs 4.0mm – 5.0mm (5/32 in): Growers and Sows. Matches chewing strength for maximum intake stability and the best gain efficiencies High-Efficiency Feed Formula…
Rabbits have highly sensitive digestive systems and require specific pellet diameters. Farm ScaleRecommended SetupRequired Die SizePrimary Goal<500 RabbitsVTKLP-125 / 150 (Electric)3.0mmSafe weaning & steady growth1,000–3,000 RabbitsVTKLP-210 / 230 (Diesel/Elec)4.0mmHigh FCR & uniform pellet hardness5,000+ RabbitsVTKLP-300 / 360 (Diesel)4.0mm – 5.0mmMass production & disease prevention Pellet Sizes for Different Rabbits Standard poultry dies produce crumbly rabbit feed. Our rabbit feed pelletizers use thicker, high-compression dies tailored for high-roughage recipes: Young/Weaning Kits:…

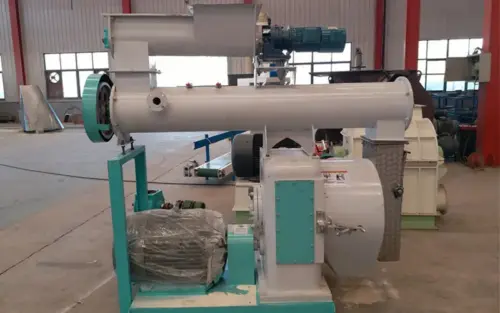

Our HMK ring die cattle feed pellet mill integrates specialized high-pressure dies. The vertical pressure system handles up to 70% ground forage without clogging. For large-scale operations (1-10 T/H output), commercial ring die systems utilize a vertical axis configuration. The inner and outer roller edges traverse the exact same distance across the die. This specific mechanical alignment eliminates roller skip. The result is that the die life is greatly extended…
We know that a poultry farm may have different chickens. To get the best feed result, you need to match the right screen size with your chicken’s age and breed. Here is a reference guide for you to choose the screen size for our poultry feed grinder machine: Chicken Age / BreedOptimal Grinding Size (Screen Hole)Chick (0-8 Weeks)1.0 – 2.0 mmPullet (8-20 Weeks)2.0 – 3.0 mmLaying Hen (20+ Weeks)3.0 -…
Suitable for forming a variety of biomass materials, straw length from the powder to 60mm; the water content of 5 – 30%, and all can be processed shape. Self-adjustment device holding compensation for changes in raw material so that materials are not crowded groups, not blocking, not boring machine Life of key components adding the extension of the machine trouble-free run time, also production increasing and the use of lower…
Main Feature of the small feed manufacturing plant: Compact structure / Resonable craft / Convenient installation / Simple operation / Low maintenance cost / Low investment. The feed pellets produced by our small poultry feed manufacturing plant are featured of high hardness, smooth surface and internal cooked, good for the animal digestion and nutrients absorption. With suitable design, the pelletizing process can cause degeneration effect of the pancreatic enzyme boycott…
Engineering Tip for aqua feed mixer machine: Fish meal and ultra-fine wheat flour have different bulk densities compared to livestock roughage. When choosing your mixer, calculate based on a standard aqua-feed bulk density of 0.55-0.65 kg/L Electric Fish Feed Mixer Machine ModelElectric Power(kw)Output(kg/h)VTHS-1003100-300VTHS-1504150-450VTHS-2505.5200-800VTHS-5007.51000-1500VTHS-1000151500-3000VTHS-200018.52000-5000 Diesel Engine Fish Feed Mixer Machine ModelDiesel Engine Power(HP)Output(kg/h)VTHS-1004100-300VTHS-1505150-450VTHS-2507200-800VTHS-500101000-1500VTHS-1000201500-3000VTHS-2000252000-5000
In the feed mixer machine, two shafts are positioned in a double drum housing on which series of blades are fixed. The two shafts rotate at a specific peripheral speed in opposite direction while paddles on each shaft overlap in the middle of mixer. It lifts all the ingredients in the middle and create flowing zone by neutralizing gravitational force working on particles of different shape, size, and density. Hence,…
ModelSDFS 56*36SDFS 56*40SDFS 60*30SDFS 60*45SDFS 60*60SDFS 60*75Capacity(t/h)2-33-55-77-99-1111-13Power (kw)18.5/2230/3718.5/2245/5575/9090/110rotor diameter (mm)560560600600600600Champer Width (mm)360400300450600750hammer speed (m/s)868694949494rotor speed (r/min)298029802980298029802980Sieve hole size (mm)φ0.4,φ0.5,φ0.6,φ0.8,φ1.2,φ1.5,φ2.0,φ2.5,φ3.0,φ3.5,φ4.0 Why Ultra-Fine Grinding Matters for Floating Fish Feed It is very different between making floating fish feed and making normal animal pellet feed. If you want to make good floating fish feed, you must crush the raw materials into ultra-fine powder which is usually 1mm-5mm. The fish feed grinder machine must work perfectly with…
