Trusted Poultry Feed Pelletizer Machine And Animal Feed Granulator

1.feed and grass meal can be directly made into pellet without adding any liquid materials.the feed goes in and out dryly. So it does not need to be dryed.
2.The pellet is highly strong and smooth.
3.The temperature is about 70℃ in process,so the protein freezes, the nutritional value increases and is easy to absorbed for animals

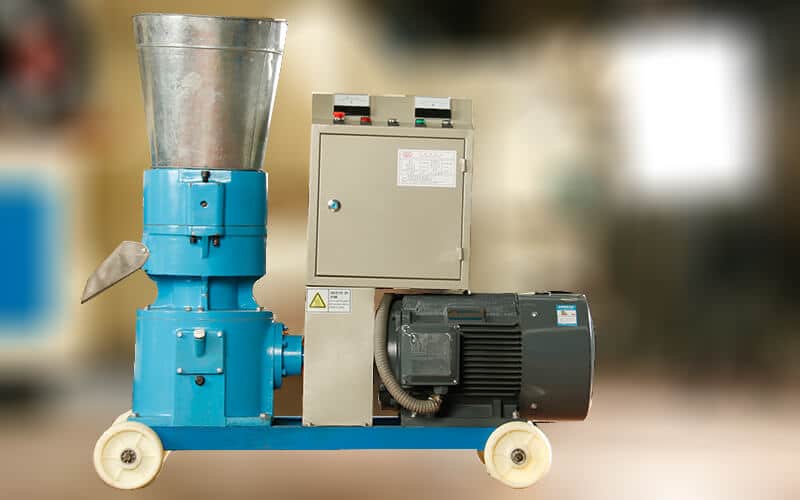

Description

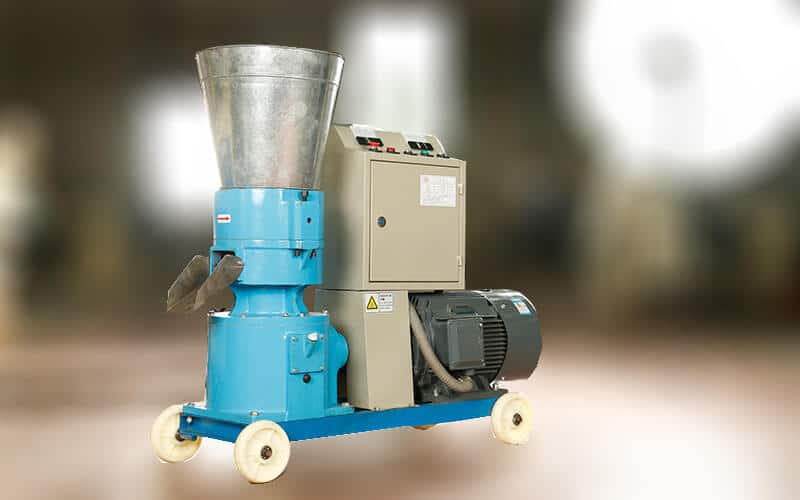

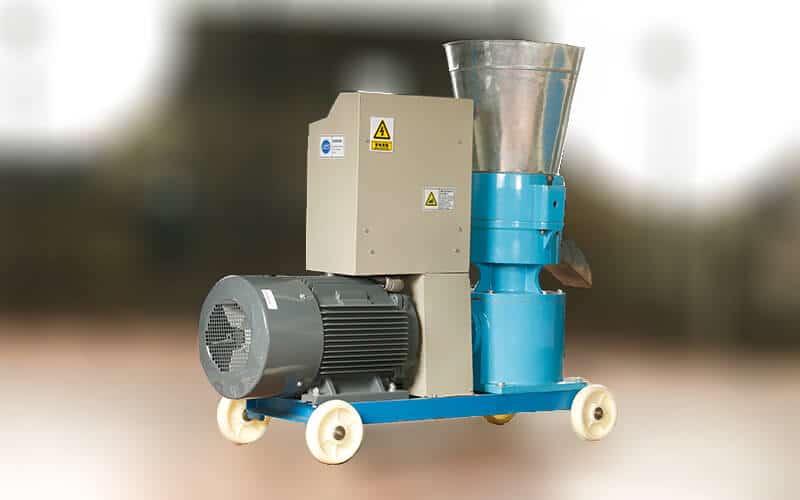

feed pellet machine9KLP series animal feed pellet machine is adopted the most advanced technology of flat die pellet machine at home and abroad. And developed,innovated and improved by technicians through years. Especially the die and the press roller are adopted best steel, which is hot quenched. So the wear-resisting property and life time of a poultry feed pelletizer is increased by 3–5years.this kind of poultry feed pelletizer machine can be used together with crusher,blender,conveyor and automatic packing machine. Poultry feed pelletizer is mainly used to produce animal feed pellets for animal feed industry before wood pellet fuel,there are several reasons why the animal feed industry choose pellets,one reason

is that with a poultry feed pelletizer machine it is possible to create specific feed blends for specific animals. This way the animals intake can also be precisely controlled. The other reason why they choose poultry feed pelletizer is that much more pellets produced by poultry feed pelletizer can be stored in one location and in a good condition.

Application of Feed Pelletizer Machine

this series of flat die pellet mill is can not only be used in small, medium or large poultry farm but also can be used at home. This kind of feed pellet machine is mainly used to make animal feed like chicken food pellet,duck food pellet, fish feed pellet,sheep feed ,and so on.raw materials can be alfalfa,grass meal,straw meal,corn meal,rice husk and so on

Features of Feed Pelletizer Machine

1.feed and grass meal can be directly made into pellet without adding any liquid materials.the feed goes in and out dryly. So it does not need to be dryed.
2.The pellet is highly strong and smooth.
3.The temperature is about 70℃ in process,so the protein freezes, the nutritional value increases and is easy to absorbed for animals

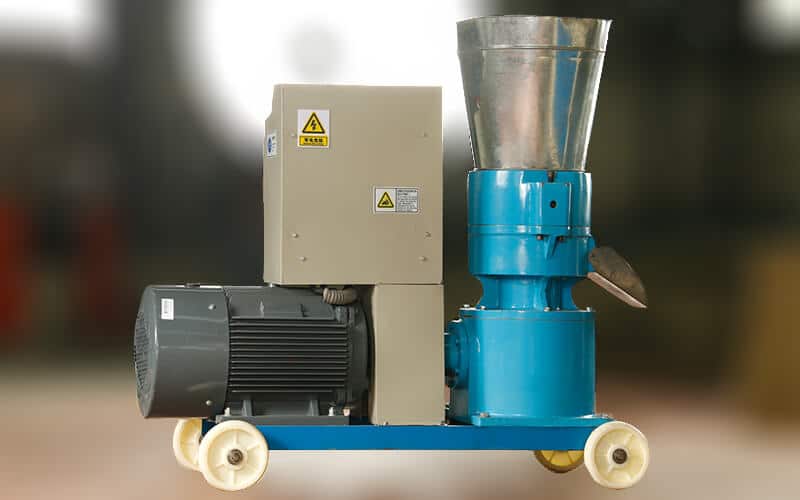

feed pellet machine

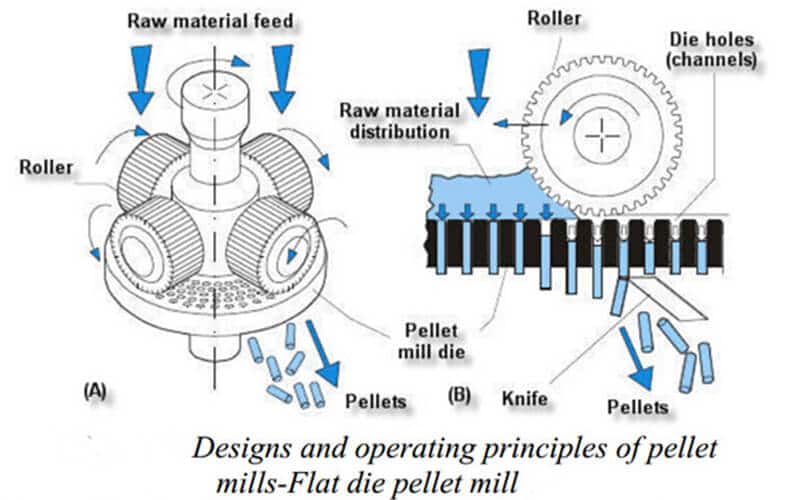

Working Principle of Feed Granulator

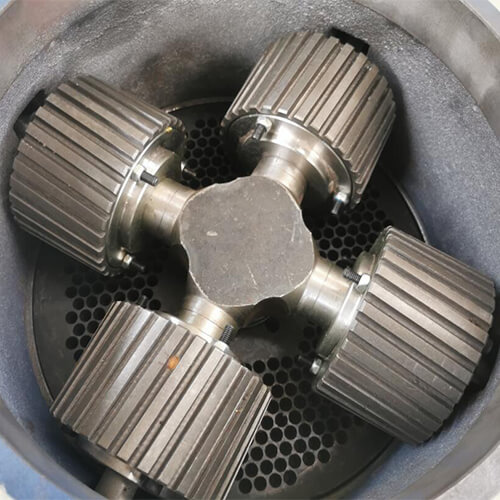

The first design of feed pellet machine to be used was the flat die pellet

machine, developed at the start of the 20th century to process animal feeds pellet. This design of feed pellet machine was based on a vertical design, where material fell onto a roller section sat on the surface of a horizontally mounted die. Material was then compressed through the die, and pellets fell from the bottom of the die.

feed pellet machine

Technical Parameter of Feed Granulator



Model
Power(kw)
Capacity(kg/h)
Speed(r/min)
Out Dimension (mm)
Weight(kg)
VTKLP-125

3

50-80

320

700*400*800

90

VTKLP-150

4

100–150

320

720*420*850

120

VTKLP-210

7.5

200–400

320

920*620*900

200

VTKLP-230

11

300–500

320

920*620*920

220

VTKLP-260

15

500–600

380

1000*720*980

250

VTKLP-300

18.5

600-700

380

1020*820*980

300

VTKLP-360

22

700-800

380

1020*820*980

380

VTKLP-400

30

900-1200

400

1200*850*1010

500

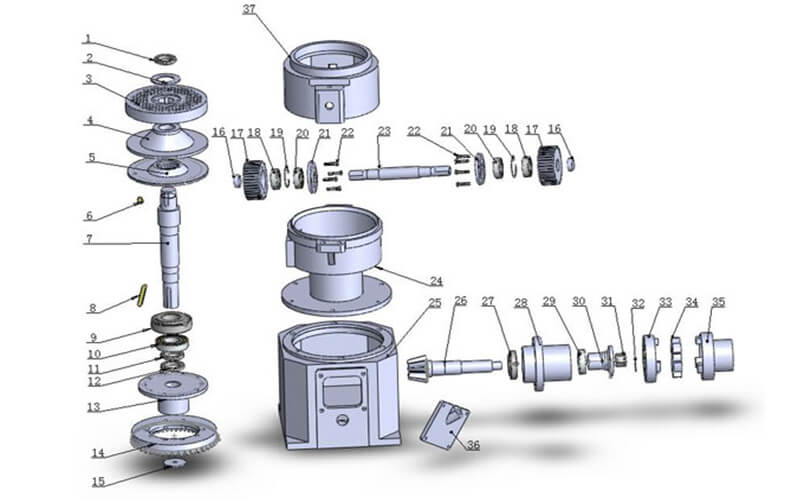

Structure Chart of Feed Granulator

feed pellet machine

Manufacture and export kinds of poultry feed pelletizer and qualified feed pellet machine,our animal feed granulator is trusted with best service used at home and small livestock farm.
