what is animal feed crusher machine?
crusher, according to Wikipedia, an animal feed crusher is a machine designed to reduce large raw materials into smaller powder form. poultry feed crusher machine may be used to reduce the size, or change the form, of waste materials so they can be more easily disposed of or recycled, or to reduce the size of a solid mix of raw materials, so that pieces of different composition can be differentiated. Crushing is the process of transferring a force amplified by mechanical advantage through a material made of molecules that bond together more strongly, and resist deformation more, than those in the material being crushed do. it is commonly used in animal feed production line and poultry feed production line.
Crushing devices hold material between two parallel or tangent solid surfaces, and apply sufficient force to bring the surfaces together to generate enough energy within the material being crushed so that its molecules separate from (fracturing), or change alignment in relation to (deformation), each other. The earliest crushers were hand-held stones, where the weight of the stone provided a boost to muscle power, used against a stone anvil. Querns and mortars are types of these crushing devices.

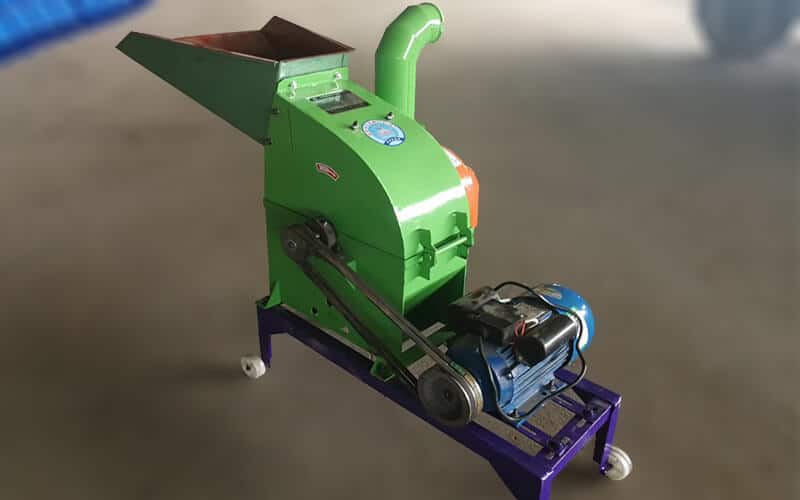

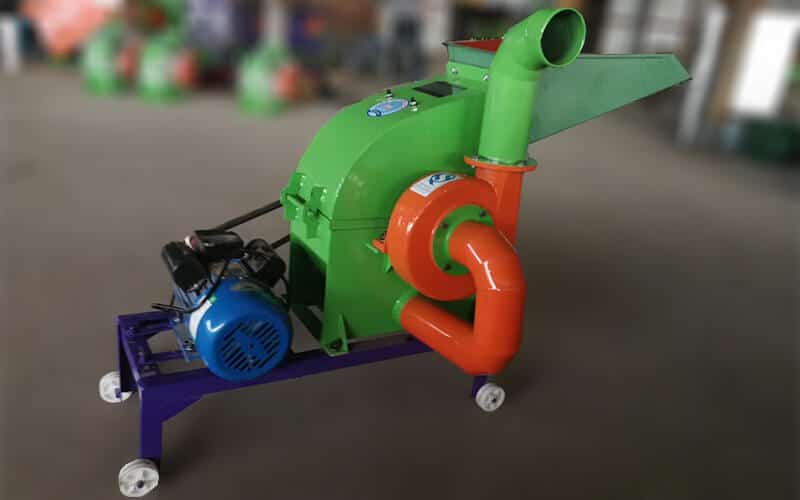

electric animal feed crusher

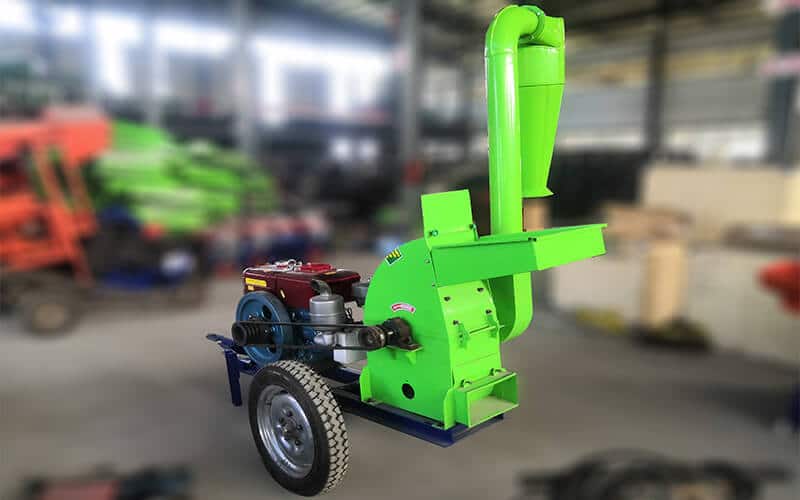

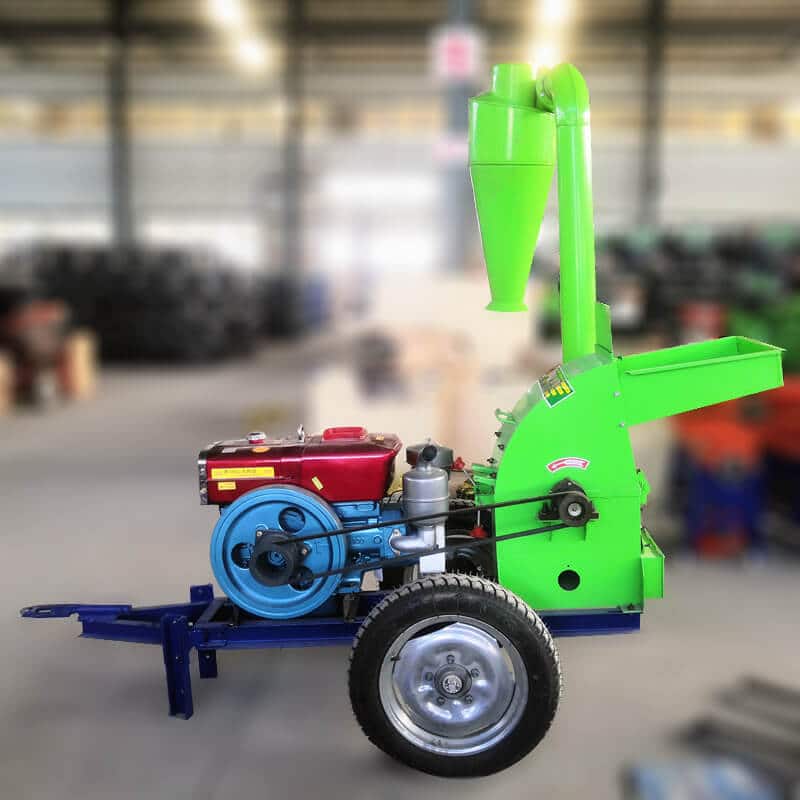

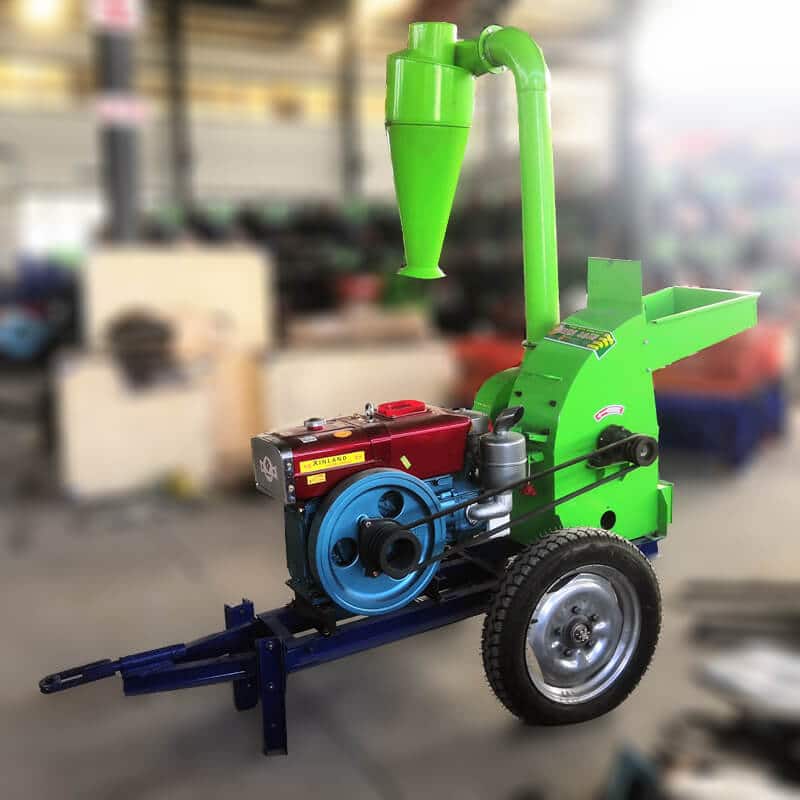

diesel engine animal feed crusher
animal feed crusher machine is an equipment to crush animal feed and poultry feed, like for crushing chicken feed, crushing cattle feed, crushing goat feed, crushing fish feed, crushing pig feed, crushing rabbit feed, and crushing fish feed, which is specially used to crush materials through high-speed collision between hammers and materials. after crushing, you can use a feed mixer machine to blend them. The raw material in the feed crushing machine is crushed to a suitable particle size for further processing of the feed, For example, in the production process of chicken feed, cattle feed, pig feed, fish feed, rabbit feed, sheep feed, etc.,
The fineness of the final product can be controlled by sieves of different sizes.the screen size can be ranged from 0.4mm to 15mm for different demand,below 1mm size, the final product is just like flour,this means if you crush grains like maize, soybean, you can produce corn flour and soybean flour for people food and animal feed.
the poultry feed crusher machine has feature of competitive price, simple structure and high efficiency, this chicken feed crusher machine is mainly used in small breeding farms, medium-sized feed manufacturing factory or household for home use. It can crush many different raw materials such as grain, soybean, corn, wheat, stalk, straw, hay, leaves, grass, alfalfa etc. this animal cattle feed crusher machine can be driven by electric motor and diesel engine, which can be chosen according to client’s demand. if clients want big capacity and have no 3 phase electricity, diesel engine will do be the best choice. and if you want to grind grains like corn, wheat, soybean, you can use our grain mill grinder machine.

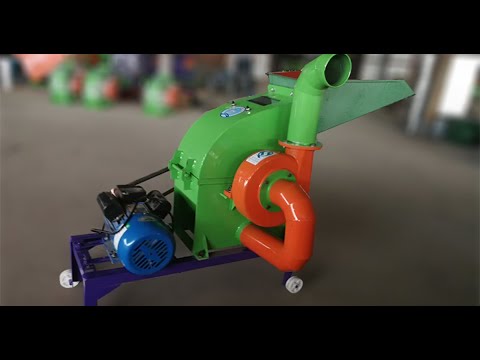

Working video of animal feed crusher machine

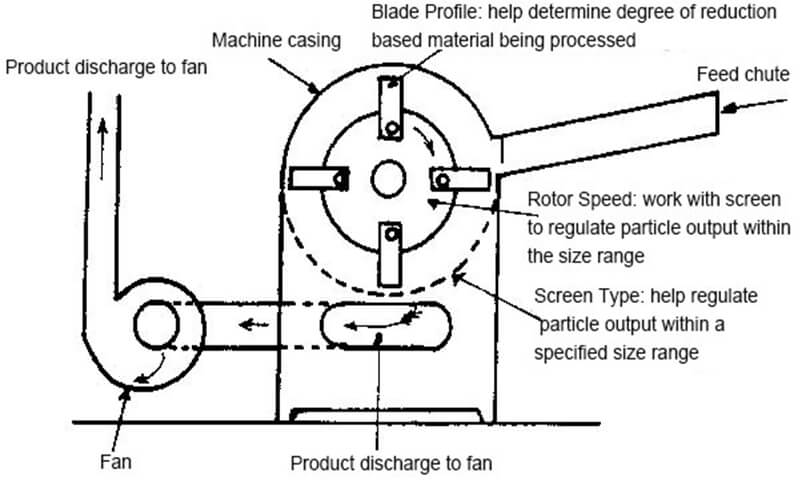

working principle of poultry feed crusher machine
The raw material enters the crushing bin from the feed port at the top of the poultry feed crusher machine. Under the action of the high-speed rotary hammer and the friction and beating of the sieve plate, the raw material is gradually pulverized, and then, under the action of centrifugal force and fan, it passes through the screen and is discharged from the outlet of the pulverizer base.
Driven by the airflow of the fan, the crushed material moves along the outer edge of the rotor, and collides and rubs against the hammer head, tooth plate and screen, and the raw material is crushed. Once the size of the crushed material is smaller than the diameter of the screen, the crushed material is discharged through the screen.
The final pulverized raw material is sent to the storage bag through the cyclone separator under the suction of the fan.
features of animal cattle feed crusher machine
the cattle feed crusher machine has simple operation, low power consumption, high efficiency, advanced design and stable performance.
it has reasonable design: the final fineness of the material can be adjusted according to the replacement of the appropriate screen.
The hammer core part is made of high-quality carbon alloy steel, which is strong and wear-resistant. Long life and durable.
This fish feed crusher machine is widely used. It can crush various raw materials, such as wheat, corn, rice, soybean, peanut, millet or other solid materials such as bones, dried meat, etc.
The fish feed crushing machine can be used in fish feed pellet factory, livestock and poultry feed pellet factory, etc.
Our poultry feed crushing machine is composed of feeding hopper, rotor, screen, induced draft fan, pulverizing chamber and conveying device.
raw materials for animal feed crusher machine
what can this poultry chicken feed crusher machine do? it is multi function hammer mill type crusher machine which can crush many different kind of raw materials.
the feed crusher machine can crush grains: corn, soybean, sorghum, barley, rice, wheat, chickpea,etc.
the feed crusher machine can crush biomass plants: grass, hay, wheat straw, rice straw, alfalfa, corn cob, leaves etc.
application of poultry chicken feed crusher machine

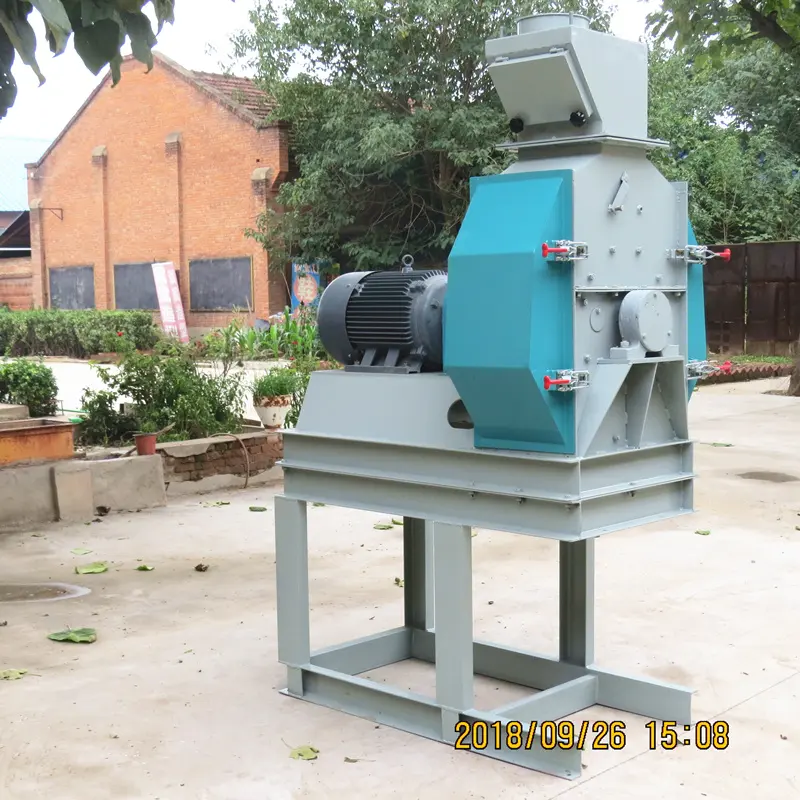

the feed crushing machine are mainly used in large, medium and small animal feed manufacturing industry and food processing industry. It can be used for both normal pulverization and fine grinding. The feed pulverizer machine equipped with detachable screen can meet the different fineness requirements of different raw materials. Thanks to the advanced energy-saving technology, the poultry feed pulverizer machine has achieved the world’s leading energy-saving effect.
when you make pellet feed for animal and poultry,feed crushing machine is necessary before pelleting,you need to crush raw material at first for pelleting. the feed crushing machine can also be used seperately to make mash feed for crushing chicken feed, crushing cattle feed, crushing goat feed, crushing fish feed, crushing pig feed, crushing rabbit feed.
maintanence of poultry feed crusher machine
Operate the poultry chicken feed crushing machine strictly according to the operating instructions. Check and clean machines every shift.
to clean the inside and outside of the feed crushing machine to avoid rusting of the machine or blockage of the screen when the machine long time not working.
If the parts are damaged or seriously worn, it should be repaired and replaced in time.
Check the tightness of the V-belt each time you start it. Aging of the belt can affect the performance of the crushing machine.
It is normal for the bearing to heat up (not higher than 25°C) after the animal cattle feed crusher machine works for a period of time. If it is heated to 60 degrees, it proves that the bearing has aged, and the consumer should stop replacing the bearing or cleaning.
specification of animal feed crusher machine
electric feed crusher machine
| Model | Electric Power(kw) | Output(kg/h) | Weight(kg) |
| VTFQ-320 | 3 | 100-300 | 50 |
| VTFQ-360 | 5.5 | 400-600 | 110 |
| VTFQ-400 | 7.5 | 700-900 | 160 |
| VTFQ-420 | 11 | 900-1200 | 180 |
| VTFQ-500 | 15 | 1200-1500 | 210 |
| VTFQ-600 | 18.5-22 | 1500-2000 | 500 |
| VTFQ-800 | 30-37 | 3000-5000 | 750 |
diesel engine feed crusher machine
| Model | Diesel Engine Power(HP) | Output(kg/h) | Weight(kg) |
| VTFQ-320 | 4 | 100-300 | 50 |
| VTFQ-360 | 7 | 400-600 | 110 |
| VTFQ-400 | 10 | 700-900 | 160 |
| VTFQ-420 | 15 | 900-1200 | 180 |
| VTFQ-500 | 20 | 1200-1500 | 210 |
| VTFQ-600 | 30 | 1500-2000 | 500 |
| VTFQ-800 | 40-50 | 3000-5000 | 750 |
