Single Screw Extruder vs Twin Screw Extruder: Complete Guide

What is a Single Screw Extruder?

A single screw extruder machine, that is our floating fish feed extruder machine, is a machine commonly used in the processing of various materials, including floating fish feed and animal feed. It utilizes a single rotating screw to move the material through a heated barrel, where it undergoes various changes. Here’s how it functions and what it’s used for:

I. Components:

1.Screw: The central part that rotates within the barrel, which is typically helical.
2.Barrel: Houses the screw and it is often equipped with heaters and coolers to control the temperature.
3.Feed Hopper: Where the raw materials are introduced into the system.
4.Die: The final shaping component that determines the final product’s shape and size.

II. Functionality:

1.Feeding: The material is fed into the extruder machine through the hopper.
2.Conveying: The rotating screw moves the material along the barrel.
3.Melting/Heating: As the material moves, it is heated, causing it to melt or mix, depending on the application.
4.Forming: It passes through the die, taking the desired shape.

III. Applications:

1.Plastics: Used to shape various plastic products.
2.Food Industry: Helps in processing food items like pasta or cereals.
3.Feed Industry: In aquaculture, it’s used to form fish feed pellets.

IV. Advantages:

1.Simplicity: Easier to operate and maintain compared to twin screw extruders.
2.Cost-Effective: Generally less expensive to purchase and run.
3.Versatility: Can handle a wide range of materials.

V. Limitations:

1.Less Efficient Mixing: Compared to twin screw extruders, single screw types may provide less homogeneous mixing, especially with complex formulas.

VI. In the Context of Fish Feed:

for fish feed production, single screw extruders are often used for simpler feed formulations where the focus is on feed shaping rather than intensive mixing or texturing.

In summary, a single screw extruder machine is a versatile and cost-effective machine with applications across various industries, including the production of fish feed. Its design and function make it suitable for specific processing needs, although it may have limitations in handling more complex materials.

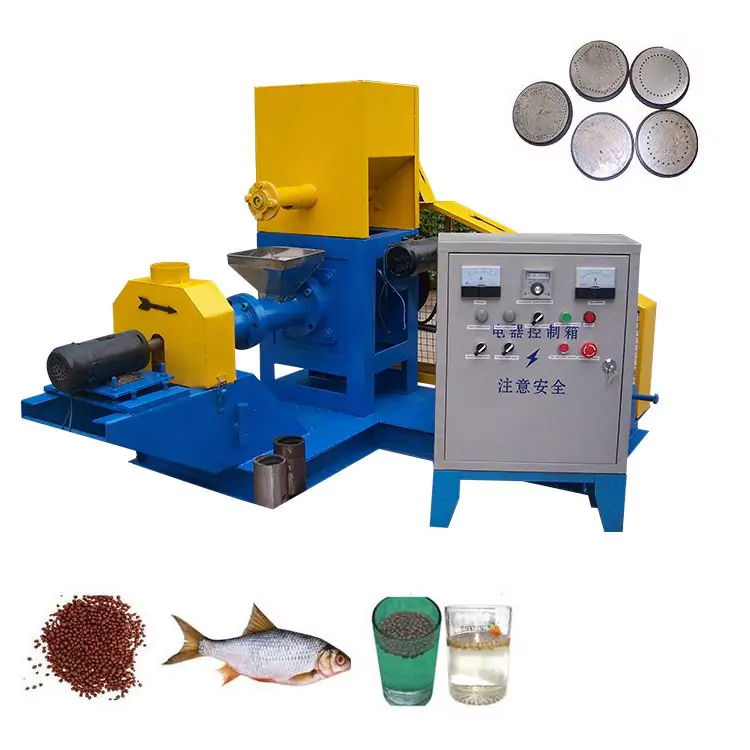

single screw fish feed pellet machine

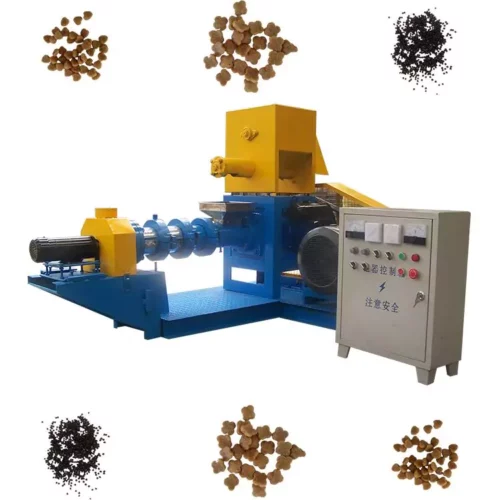

what is single screw extruder machine

What is a Twin Screw Extruder?

A twin screw extruder machine is a machine used in various industries, such as plastics, floating fish feed processing, and animal feed manufacturing. Unlike a single screw extruder machine, it has two intermeshing screws that rotate within a barrel, offering specific advantages and applications.


1.Twin Screws: Two interlocking screws rotate together, providing more control and mixing capabilities.
2.Barrel: The housing for the screws, usually equipped with temperature controller.
3.Feed Hopper: Introduces the raw material.
4.Die: Shapes the final products.


1.Feeding: Materials are added to the extruder machine.
2.Melting/Heating: The intermeshing screws provide intense mixing, heating, and melting as needed.
3.Forming: The materials take its final form through the die.


1.Co-rotating: Screws rotate in the same direction, offering intense mixing.
2.Counter-rotating: Screws rotate in opposite directions, used in specific applications.


1.Plastic Industry: Common in complex plastic processing.
2.Food Processing: Used in textured or complex food items.
3.Fish Feed Manufacturing: Provides uniform mixing of intricate feed formulas.


1.Enhanced Mixing: Offers better control and homogeneity in mixing.
2.Versatility: Suitable for a wide variety of materials and formulations.
3.Efficiency: Often more energy-efficient for complex tasks.


1.Cost: Generally, more expensive than single screw extruders.
2.Maintenance: Can be more complex to maintain.

What is the Working Principle of a Single Screw Extruder Machine?

A single screw extruder machine operates on a straightforward yet effective principle. Here’s a detailed look at its working process:

I.Feeding Phase:

1.Raw Material Introduction: The raw material is fed into the extruder machine via the feed hopper.
2.Gravity Conveyance: Gravity helps the material move into the screw’s initial section.

II.Conveying Phase:

1.Screw Rotation: The screw rotates, pulling the material through the barrel.
2.Compression: As the material progresses, the screw’s depth reduces, compressing the materials.

III.Heating/Melting Phase:

1.Frictional Heat: The material’s interaction with the rotating screw and barrel generates heat.
2.External Heating: Additional heat may be applied via heaters along the barrel.
3.Melting: In applications like plastic extrusion, the material melts into a viscous state.
4.Mixing: Simultaneous heating and rotation ensure uniform mixing of the materials.

IV.Shaping Phase:

1.Passing Through Die: The melted or mixed material is forced through a die at the single screw extruder’s end.
2.Forming: The material takes the desired shape determined by the die’s configuration.

V.Cooling and Cutting (if applicable):

1.Cooling: The extruded product may be cooled to solidify and retain its shape.
2.Cutting: It may be cut into specific lengths or sizes as required.

VI.Applications in Different Industries:

1.Plastics: Used to extrude various plastic products like pipes, profiles, and sheets.
2.Food Processing: Helps in creating products like pasta, cereals, and snacks.
3.Fish Feed Manufacturing: Utilized to form fish feed pellets.


1.Versatility: Capable of handling various materials.
2.Cost-Effective: Generally lower in cost compared to twin-screw extruders.


1.Less Efficient Mixing: May not be suitable for complex mixing tasks.

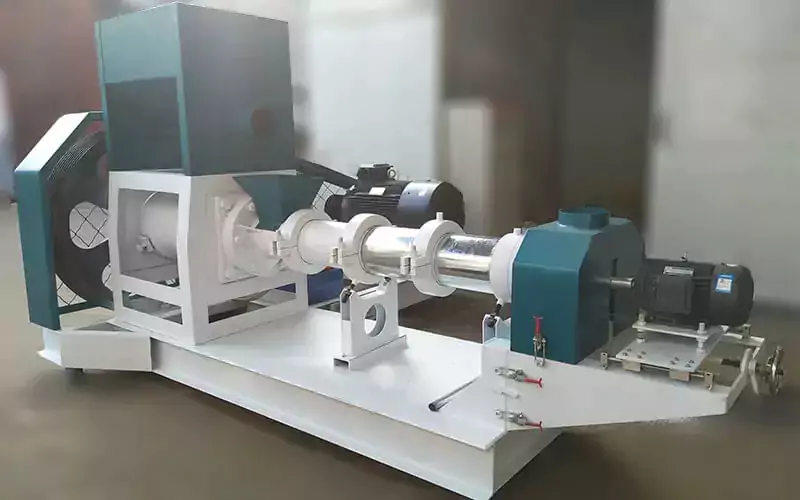

single screw fish feed pellet machine working principle
single screw fish feed making machine

What is the Working Principle of a Twin Screw Extruder Machine?

The twin screw extruder machine is a sophisticated device used across various industries. Its working principle can be explained through the following key stages:

I.Feeding Phase:

1.Material Introduction: Materials are fed into the extruder via the feeding hopper.
2.Controlled Feeding: Dual screws enable better control over the material’s conveyance.

II.Conveying Phase:

1.Intermeshing Screws: The two screws either co-rotate or counter-rotate, depending on the application, to convey the materials through the barrel.
2.Compression: The screws configuration allows controlled compression and mixing of the materials.

III.Mixing and Heating Phase:

1.Enhanced Mixing: The twin screws offer improved mixing capabilities, especially for complex materials.
2.Heating: Through friction and external heaters, the material is heated as needed for the specific application.
3.Homogenizing: The materials are uniformly mixed and, if necessary, melted into a consistent mass.

IV.Shaping Phase:

1.Through the Die: The homogeneous material is forced through a shaping die.
2.Forming: The material assumes the desired shape and texture dictated by the die.

V.Cooling and Cutting Phase (if applicable):

1.Cooling: The product is cooled to solidify and maintain its shape.
2.Cutting: The extruded product is cut to specified sizes.

VI.Applications in Different Industries:

1.Plastic Production: Ideal for complex plastics and polymer blends.
2.Food Manufacturing: Useful in producing textured food items.
3.Animal Feed: Enables precise formulation of feeds, including floating fish feed pellets.


1.Superior Mixing: Delivers enhanced mixing and blending capabilities.
2.Versatility: Can handle a wide range of material types and formulations.
3.Efficiency: Often more energy-efficient when dealing with intricate tasks.


1.Higher Costs: Generally more expensive to purchase and maintain than single screw extruders.

In summary, the working principle of a twin screw extruder machine revolves around controlled feeding, conveying, mixing, heating, shaping, and, if necessary, cooling and cutting. Its dual screws and intricate design make it suitable for more complex tasks and provide a level of control and efficiency unparalleled by single screw extruder.

Which is better single screw extruder and twin screw extruder?

The table as below succinctly compares the main advantages and disadvantages of Single Screw Extruder Machine and Twin Screw Extruder Machine. The symbol ✓ indicates the presence or advantage of a feature, while the symbol ✗ indicates a limitation or disadvantage in that context. It provides an overview that can guide decision-making based on specific requirements and constraints.

AspectSingle Screw ExtruderTwin Screw Extruder
Simplicity✓ Easier to operate and maintain✗ More complex design
Cost-Effectiveness✓ Generally lower in cost✗ More expensive to purchase, operate, and maintain
Versatility✓ Suitable for less complex tasks✓ Suitable for a wide variety of materials and formulations
Mixing Capability✗ Less efficient in mixing complex materials✓ Superior mixing and blending capabilities
Control✗ Less control over the process✓ Greater control over the extrusion process
Energy Efficiency✓ Can be more energy-efficient in certain applications✓ Often more energy-efficient and faster in handling intricate tasks
Limited Mixing Capability✓ Less efficient in mixing complex or heterogeneous materials✗ Enhanced mixing may lead to higher costs
Inconsistency✓ May produce inconsistent products if not properly managed✗ Consistent but at a potentially higher cost
Complexity✗ Simpler design may limit functionality✓ More complex design allows for greater functionality but may require more maintenance
Overengineering Potential✗ Risk of underperforming for complex tasks✓ Risk of overengineering for simple tasks
AspectSingle Screw ExtruderTwin Screw Extruder

What is the Use of Single Screw Extruder Machine?

A Single Screw Extruder Machine, that is floating fish feed pellet machine, is an essential machine widely utilized in several industries. It employs a rotating screw to convey material through a heated barrel, resulting in a variety of applications. The Single Screw Extruder is a multipurpose tool with wide applications in various sectors, such as food processing, animal feed, and pharmaceuticals. Its simplicity, cost-effectiveness, and appropriateness for less intricate tasks make it an essential part of many manufacturing processes. Its usage, however, might be limited by its mixing capabilities and control, especially when dealing with more complex materials or requirements.

Food Industry

  • Food Processing: Creating processed food items like pasta, snacks, and cereals.
  • Texture Formation: Imparting specific textures to food products.

Animal Feed

  • Feed Pelletizing: Producing uniform animal feed pellets.
  • Nutrition Mixing: Enabling proper mixing of nutritional components.


  • Medicine Manufacturing: Assisting in the mixing of active ingredients with excipients for medicine production.

Advantages over Twin Screw Extruders

  • Simplicity: Simplicity in design for ease of operation and maintenance.
  • Cost-Effective: Generally more affordable than twin screw extruder machine.

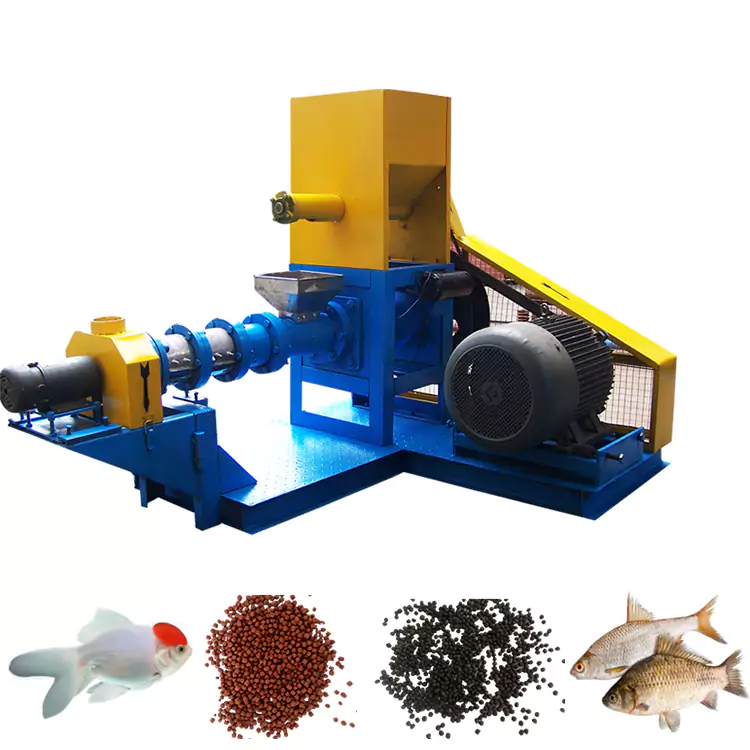

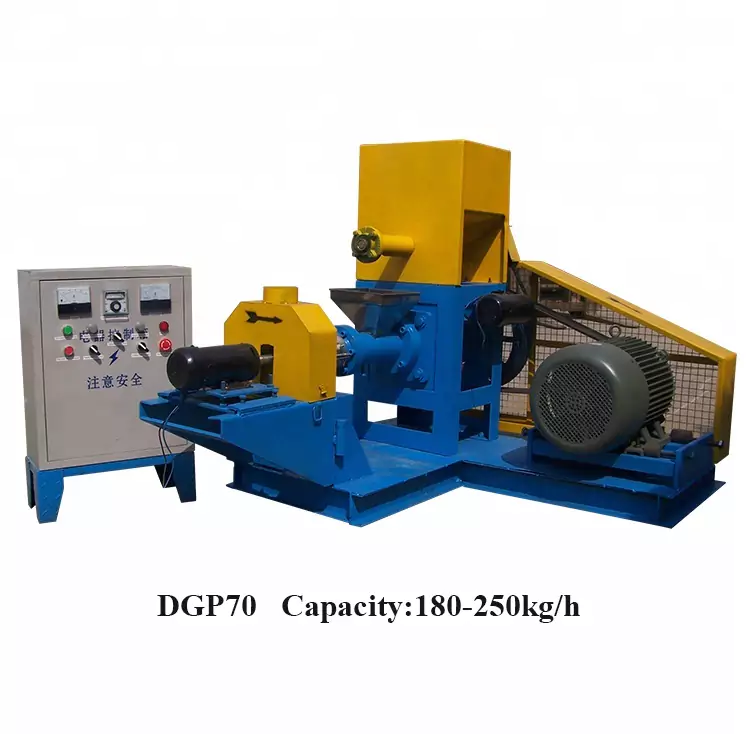

single screw extruder vs twin screw extruder
single screw vs twin screw
