Project Overview
| Item | Details |
| Country | Spain |
| Shipping port | Shanghai |
| Destination port | Valencia Spain |
| Year | 2018 |
| Equipment | DGP-60 floating fish feed machine and electric dryer oven |
| Capacity | 100-120 kg/h |
| Application | making floating fish feed and drying final pellets |
| Raw Materials | fish meal, soybean meal etc |
| Pellet Size | 0.9mm, 1mm, 2mm, 3mm, 4mm, 6mm, and 10mm |
The customer wants to produce different size food for fish, dog and other pet food with floating fish feed machine for 100-120kg/h, and use electric dryer oven to dry all types of food like meat, fish or others and final floating fish feed. Based on the customer’s production requirements, we recommended the DGP-60 fish feed pellet machine. The solution was designed for floating feed production with stable output and suitable pellet size control.

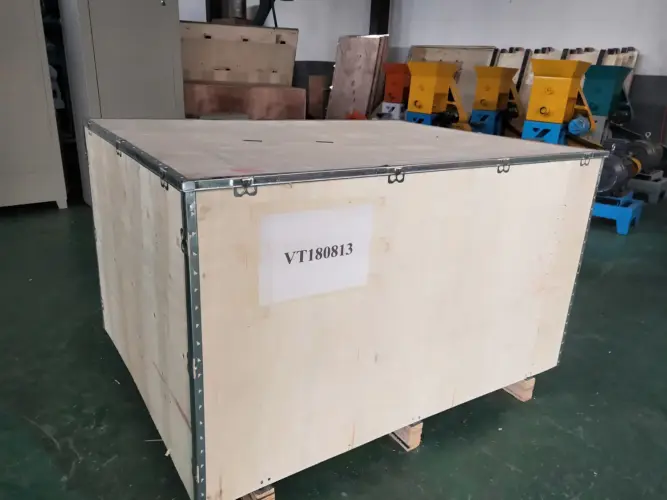

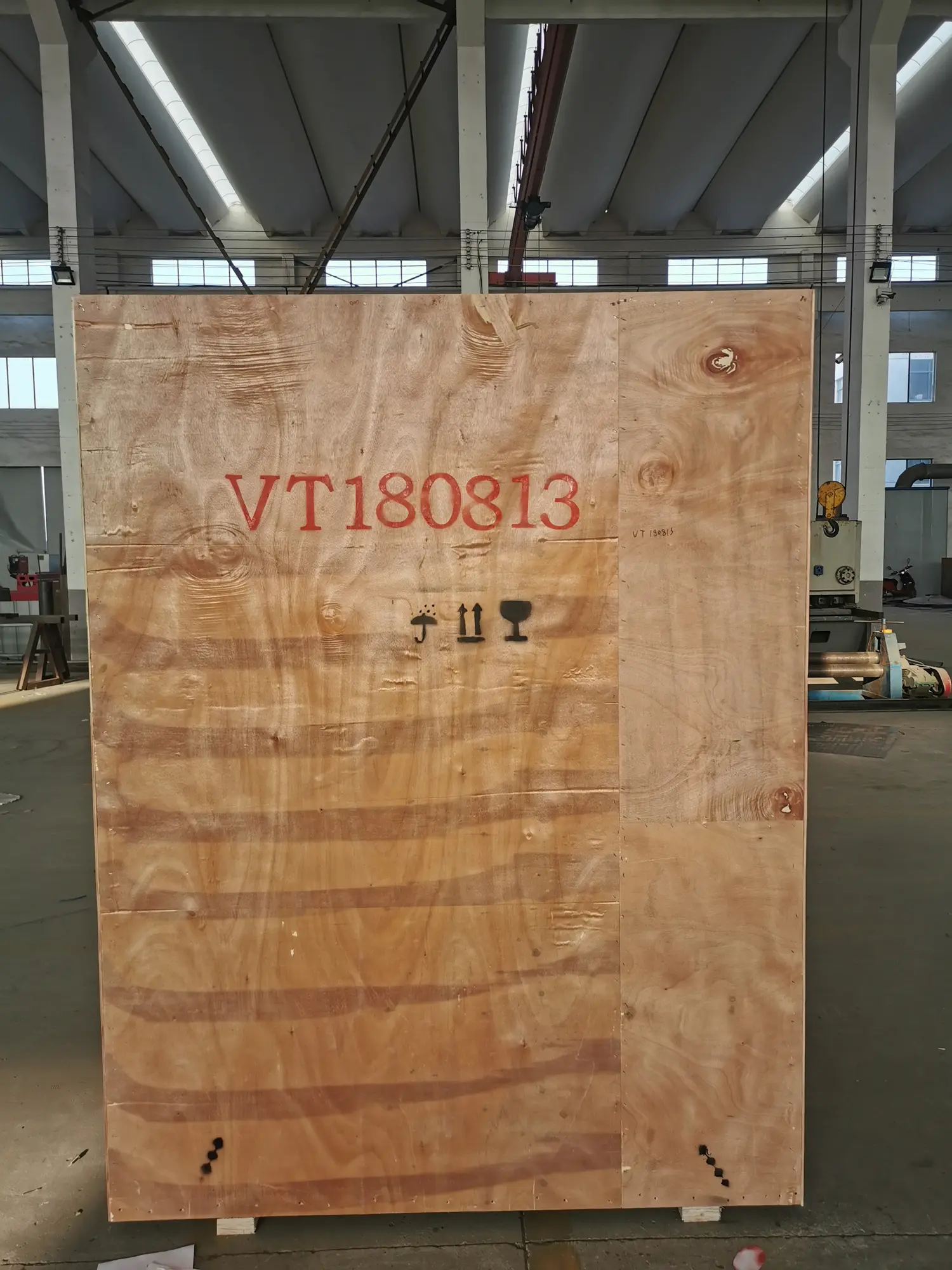

After manufacturing and testing, the DGP-60 floating fish feed machine and electric dryer oven were packed in wooden cases and shipped from Shanghai port to Valencia, Spain in 2018.
Project Photos and Package
Machine Specification

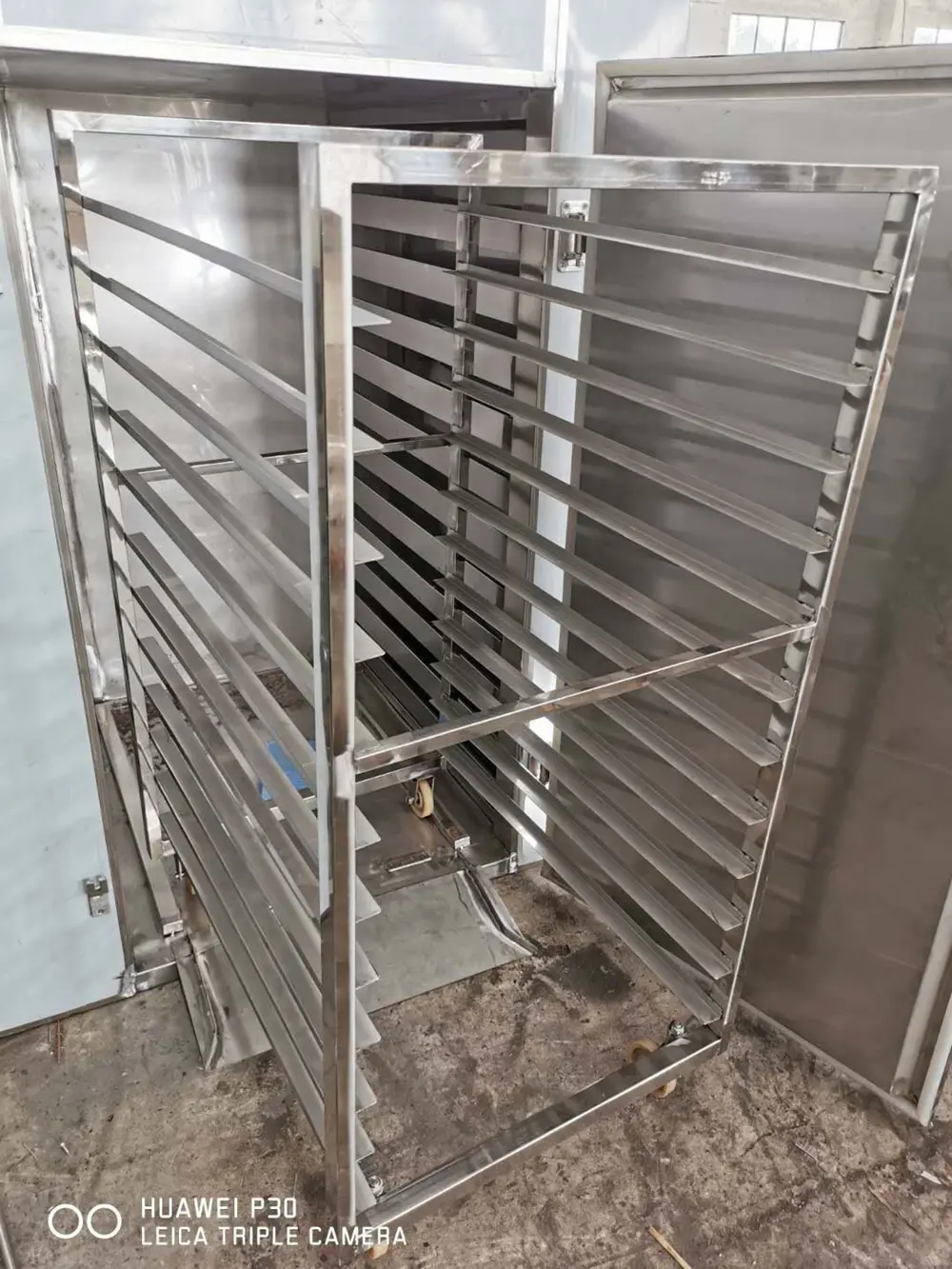

Electric Dryer oven:
Applicable to all types of food, meat, fish or others.
Drying capacity: 60Kg / lot
Drying method: hot air circulation
Fan power: 0.45 Kw
Number of carts: 1 piece
Number of trays: 24
Dimensions: 1400X1200X2200mm
Heating source: electric, steam
Drying temperature: 50-140 ° C (adjustable)
Inside part: stainless steel tray and trolley
IP 65 or higher
Drying time: adjustable
Equipment material: stainless steel.

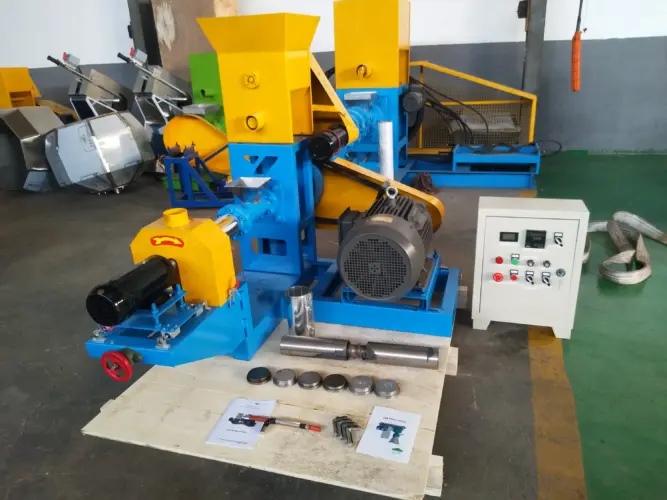

Floating fish pellet machine
Model: DGP-60 Capacity:100~120kgs/h
Power:15kw
Feeding power:0.4kw
Cutting power:0.4kw
Size:1.46X1.02X1.25m
Weight:200kgs
