Project Overview
| Item | Details |
| Country | South Africa |
| Shipping port | Tianjin |
| Destination port | Durban |
| Year | 2017 |
| Equipment | DGP-70 small floating fish feed production line including: DGP-70 fish feed extruder, HS-150 fish feed mixer, LS-1.5 screw conveyor |
| Capacity | 150-300 kg/h |
| Application | Production of floating fish feed pellets for aquaculture farms |
| Raw Materials | fish meal, soybean meal, bone meal, corn meal etc |
| Pellet Size | 2mm, 3mm, 5mm, 6mm |
In 2017, a fish farmer from South Africa contacted us for a small floating fish feed production solution for his own aquaculture farm.
Because his production demand was relatively small, he needed a small floating fish feed production line with low investment, simple operation, and stable performance.
Based on his requirements, we supplied a DGP-70 floating fish feed extruder production line with mixing and conveying equipment to achieve a production capacity of 150-300kg/h.
Production Process
1. Raw Material Mixing
The customer used powder-form raw ingredients like fish meal, soybean meal, and corn meal. So, no grinding process was required.
2. Conveying
The LS-1.5 screw conveyor automatically transfers mixed materials into the extruder.
3. Extrusion
The DGP-70 floating fish feed extruder machine produces floating fish pellets with adjustable sizes according to customer requirements.

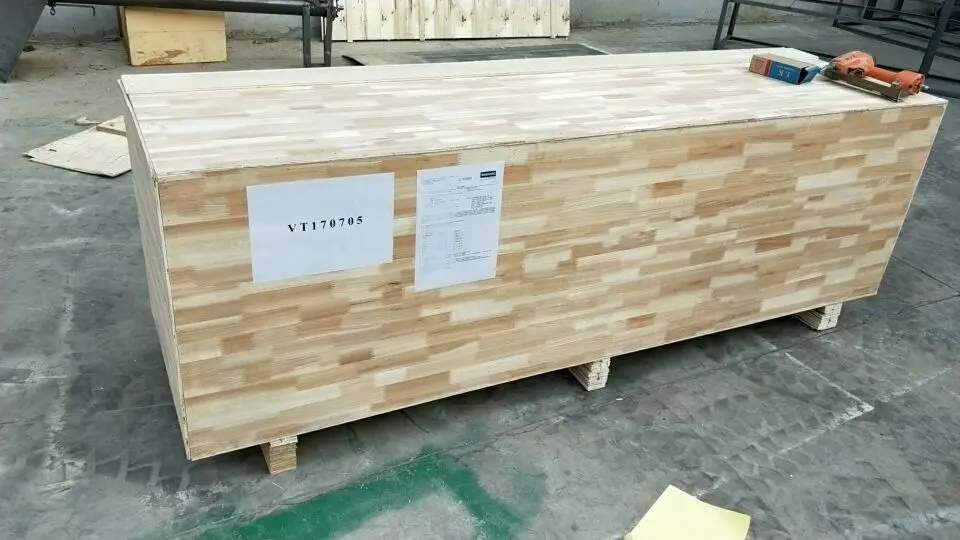

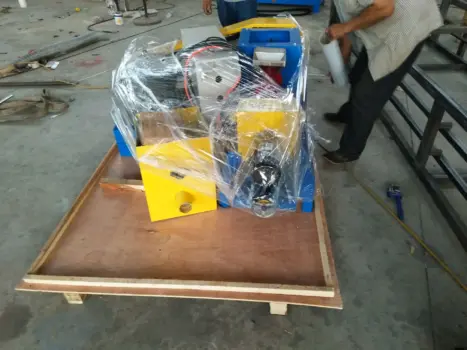

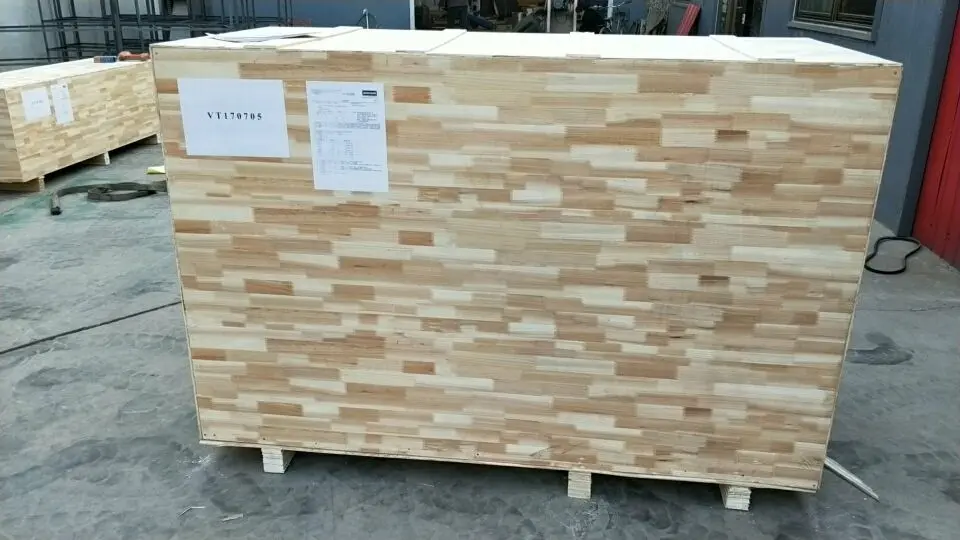

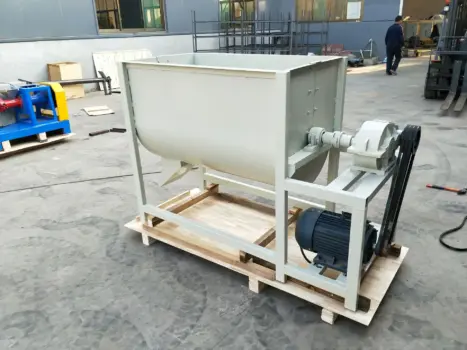

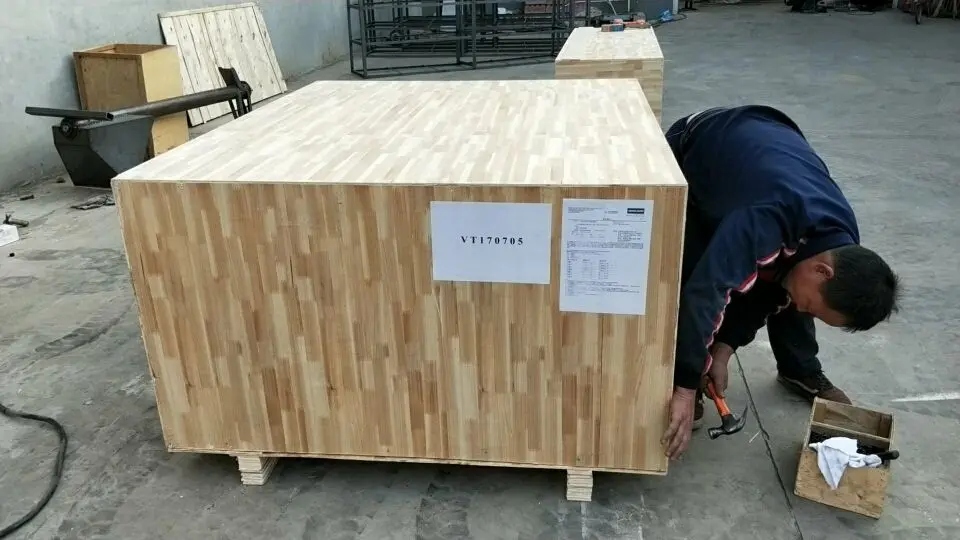

Packaging and Shipment Photos
The DGP-70 floating fish feed production line provided the customer with a compact solution for producing floating fish feed directly on his own fish farm. The complete system helped the customer produce floating fish pellets with different sizes while maintaining simple operation and low investment.
After the equipment arrived in South Africa, we provided installation guidance to help the customer complete the setup. The DGP-70 extruder was tested after installation and produced floating fish feed pellets with the required sizes.
Equipment Specification of South Africa Floating Fish Feed Production Line
| ITEM | MODEL | TECHNICAL DATA | QUANTITY (SET) | REMARKS | |
| fish feed pellet mill | DGP-70 | Capacity:150-300KG/H Main Power:18.5kw feeding power:0.4kw cutting power:0.75kw screw diameter:70mm Size:1600*1400*1350mm Weight:450kgs | 1 | Electric motor | |
| fish feed mixer | HS-150 | Capacity:50-100KG/batch,100-300KG/hr Power:3KW Cv≦%3 size:1400X580X1050MM | 1 | Electric motor | |
| screw conveyor | LS-1.5 | Capacity:150-300KG/H Power:3KW size:3200X180X190MM | 1 | Electric motor | |
