this small pellet mill has not got a bigger production capacity either, its capacity is just 50–150kg/h,but it is very light which can also be used in small poultry farm or used at home to make pellets. the principle of the small pellet mill is circular motion on a plate die with high qualified alloy steel roller through a special treatment, spindle and flat die by the action of the friction between the roll rotation and plate die, the material between the roller and template will go into gelatinization so protein coagulation changes, then pellets produced by this small pellet mill discharges from the die hole and sent out by the rejection trays outside the machine, particle length can be adjusted through the incision on the small pellet mill

Specification of feed pellet mill

Model:150

Power:4kw,three-phase electricity
Capacity:100–150kg/h Shaft speed: 320r/min
Outsize:720X420X850mm
Weight:48kg Remark:it can be driven by belt or gear
raw materials:grains powder,straw meal,alfalfa,rice husk,grass meal,sunflower,etc
water content:10-12%

Features of feed pellet mill

＊ Simple structure, wide adaptability, small footprint and low noise.
＊ the moisture of pellets for granulating materials is much less, more suitable for storage.
＊ Chicken, ducks, fish, mixed powder feed to get higher than economic benefits.
＊ Dry-processing, the production of feed pellet hardness and high, the surface is smooth, internal improvement, can improve digestion and absorption of nutrients.

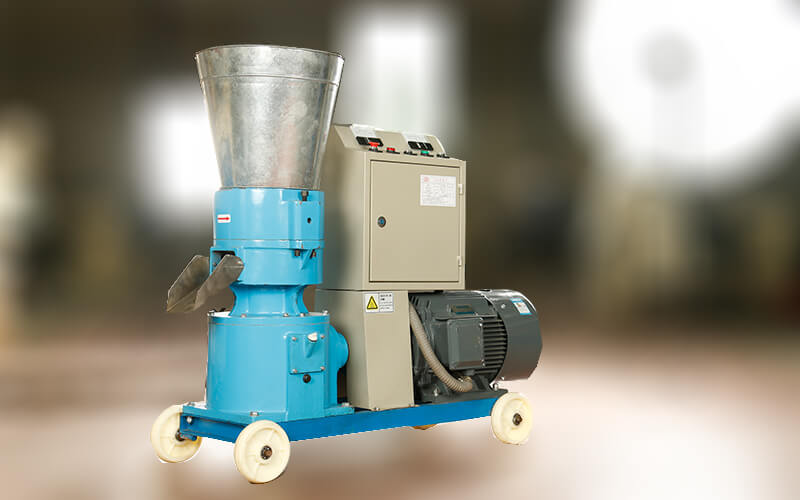

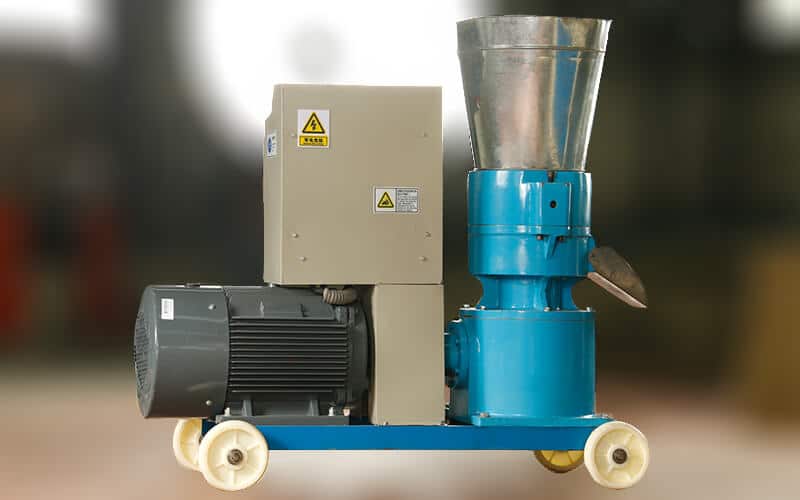

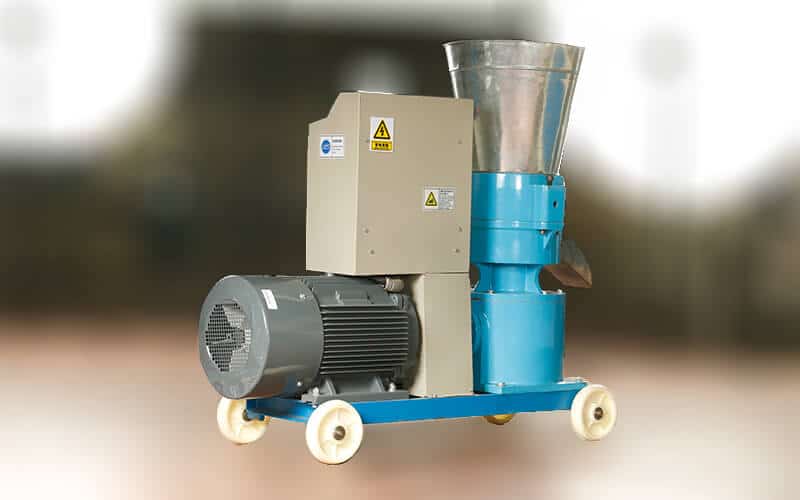

pictures of feed pellet mill

model 150 small pellet mill made in China to make chicken feed pellet used in animal farm for fodder like cattle fodder pellet,fish food pellet and so on.
